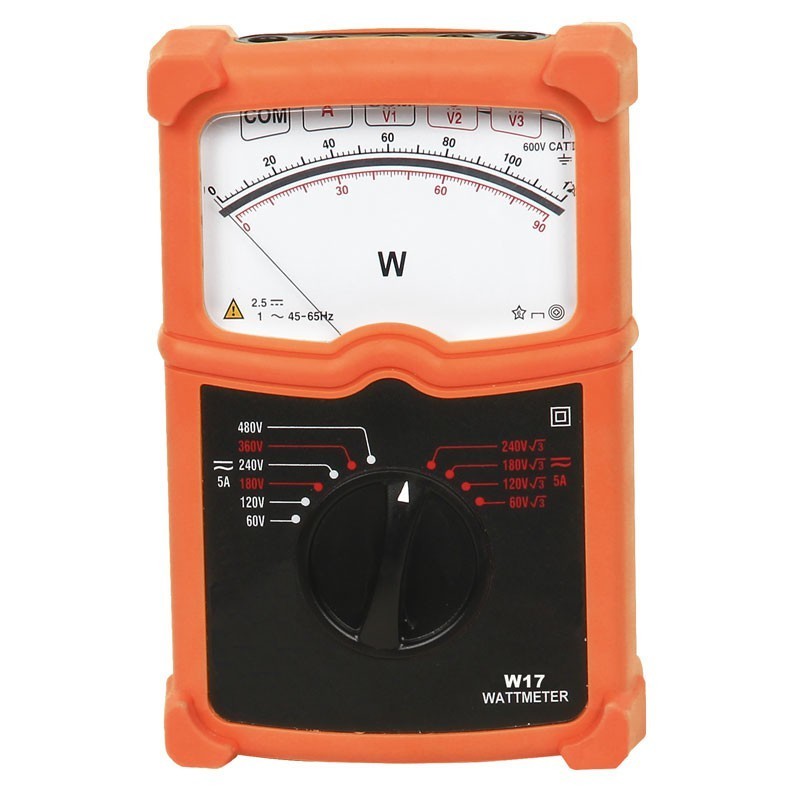

Single-phase / DC / 3-phase watt meter, single current rating at 5 amps. Only 2 easy reading levels with a parallax mirror. It is compatible with the watt meter switch using a 2 watt meter measurement method with separate voltage and intensity circuits.
Selector calibers:
Monophasic and continuous voltage: Single-phase AC and DC voltages : 60 - 120 - 180 - 240 - 360 - 480 Volts
3-phase AC voltages : 100 - 200 - 310 - 415 Volts
- Accuracy: 2.5% in DC and 1% in AC
- AC frequency range: 45 - 65Hz
- Protection with an HPC fuse on the current circuit
- Auto-protected on the voltage circuit
- Double insulation
- CEI-1010 - CAT III - 600V (pol2)
Selector calibers:
Monophasic and continuous voltage: Single-phase AC and DC voltages : 60 - 120 - 180 - 240 - 360 - 480 Volts
3-phase AC voltages : 100 - 200 - 310 - 415 Volts
- Accuracy: 2.5% in DC and 1% in AC
- AC frequency range: 45 - 65Hz
- Protection with an HPC fuse on the current circuit
- Auto-protected on the voltage circuit
- Double insulation
- CEI-1010 - CAT III - 600V (pol2)
Eigenschaften
- W17/ELE
