Dim. : 250 x 150 x 30mm.
Weight : 900g.

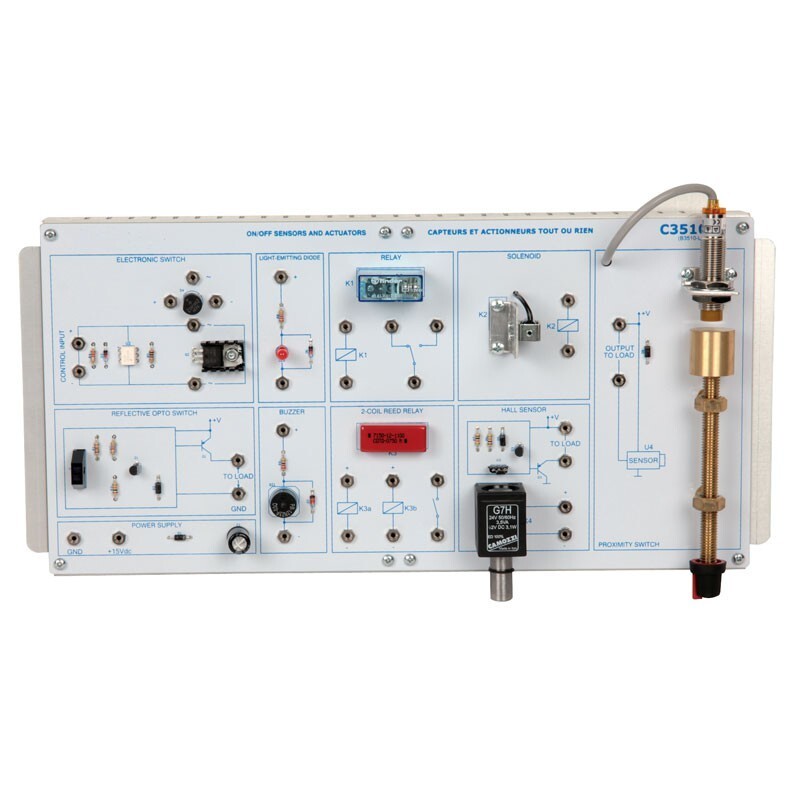

This model includes sensors currently used in industry:
- an optoelectro-reflection barrier, with its output amplifier
- a Hall effect sensor with its output amplifier
- an inductive proximity sensor with its output amplifier
- facing a metallic mass which the operator progressively displaces using a worm screw.
The model also includes:
- an electronic switch consisting of a triac and its electronic control
- a dry relay and a reed relay with two coils
- two solenoids: one facing the Hall sensor
- a visual LED display and a piezoceramic type buzzer with integral micro-oscillator.
PRACTICAL WORKS:
- Description of the different components and their usage.
- Functioning of the amplifiers.
- Measurement of the detection distance of the inductive sensor.
- Analysis of the electronic switch, controlled by direct or alternating current.
- Study of a line consisting of an optoelectro-barrier, a switch and a solenoid.
- Possibility of making other lines: optoelectro-barrier - reed relay - Hall sensor - electronic switch - buzzer.
ACCESSORIES SUPPLIED:
1 set of leads Ø2mm: 2 x 100cm / 2 x 50cm / 3 x 30cm / 3 x 15cm
ADDITIONAL / UPDATED INFORMATION:
- Infofile (PDF)
and/or
- Internet: http://www.langlois-belgium.be/
For your search, type keyword(s) or product code (without extension /ELE).
