Lighting control system + PLC + Monitoring software.
Light control cabinet:

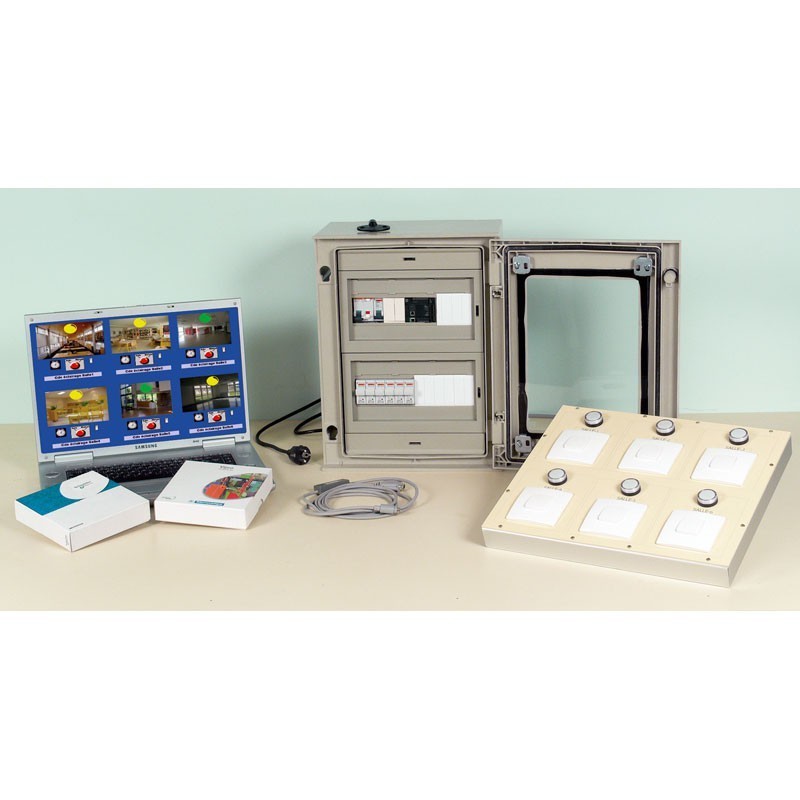

This model is a room lighting unit comprising an electrical cabinet and a console fitted with low-voltage spotlights. Using a TCP/IP PLC and monitoring software, it is possible to control the model and view its operation on a computer.
OPERATING PART: ELECTRICAL CABINET + LIGHTING CONSOLE
- 1 32A rated 30mA residual current four-pole circuit breaker
- 2 double pole circuit breakers for protecting the 6 lighting circuits
- 6 double pole remote control switches.
- 1 double pole circuit breaker for protecting the PLC.
- 1 connection terminal block
- 6 24V LED lamps
- 6 push-buttons for manual lighting control
- 1 3m multiwire cable for connecting the lights to the electrical cabinet.
PLC
- with 10 relay outputs and 14 inputs, supplied with
- a cable for interconnection with the model
- programming software in English/French in ladder language.
- Dimensions: 170 x 130 x 130 mm. 220-240V AC
MONITORING
- Allows you to manage the lighting control model from a PC
- Offers the basic features of a graphical tool
- acquisition and display of PLC variables
- monitoring and control of lights (switching on, switching off and timer)
- The software’s graphics editor supports many applications.
The user can modify the preloaded demo program or create a new one.
FEATURES OF THE ASSEMBLY
- Powered by a 230V mains cable
- Metal industrial cabinet with a glazed door. Dims: 400 x 300 x 200 mm
- Lighting console: dim. 400 x 330 x 200mm
- The assembly is supplied already wired with a monitoring example and all mains leads necessary for proper operation.
Light control cabinet:
This model is a room lighting unit comprising an electrical cabinet and a console fitted with low-voltage spotlights. Using a TCP/IP PLC and monitoring software, it is possible to control the model and view its operation on a computer.
OPERATING PART: ELECTRICAL CABINET + LIGHTING CONSOLE
- 1 32A rated 30mA residual current four-pole circuit breaker
- 2 double pole circuit breakers for protecting the 6 lighting circuits
- 6 double pole remote control switches.
- 1 double pole circuit breaker for protecting the PLC.
- 1 connection terminal block
- 6 24V LED lamps
- 6 push-buttons for manual lighting control
- 1 3m multiwire cable for connecting the lights to the electrical cabinet.
PLC
- with 10 relay outputs and 14 inputs, supplied with
- a cable for interconnection with the model
- programming software in English/French in ladder language.
- Dimensions: 170 x 130 x 130 mm. 220-240V AC
MONITORING
- Allows you to manage the lighting control model from a PC
- Offers the basic features of a graphical tool
- acquisition and display of PLC variables
- monitoring and control of lights (switching on, switching off and timer)
- The software’s graphics editor supports many applications.
The user can modify the preloaded demo program or create a new one.
FEATURES OF THE ASSEMBLY
- Powered by a 230V mains cable
- Metal industrial cabinet with a glazed door. Dims: 400 x 300 x 200 mm
- Lighting console: dim. 400 x 330 x 200mm
- The assembly is supplied already wired with a monitoring example and all mains leads necessary for proper operation.
