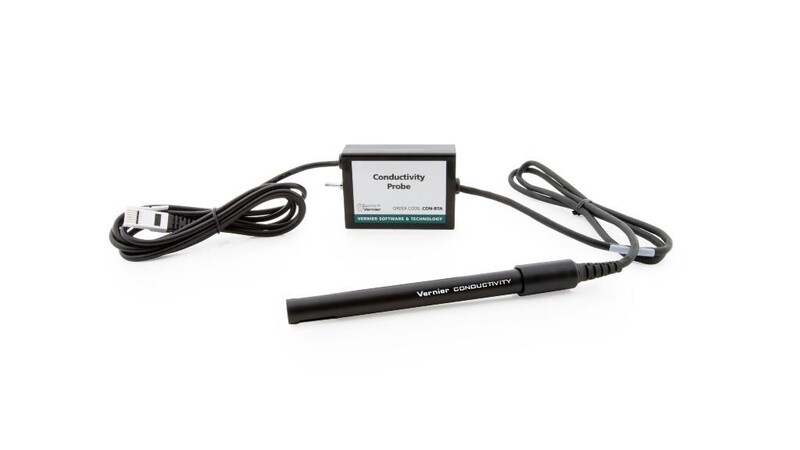

The Conductivity Probe has three ranges, providing optimal precision in any given range. Biology teachers can use this probe to demonstrate diffusion of ions through membranes. Chemistry students are able to quickly investigate the difference between ionic and molecular compounds, strong and weak acids, or ionic compounds that yield different ratios of ions. Environmental science students use it to measure TDS, total dissolved solids.
Range:
- Low Range: 0 to 200 μS/cm (0 to 100 mg/L TDS)
- Mid Range: 0 to 2000 μS/cm (0 to 1000 mg/L TDS)
- High Range: 0 to 20,000 μS/cm (0 to 10,000 mg/L TDS)
Typical Resolution:
- Low Range: 0.1 μS/cm (0.05 mg/L TDS)
- Mid Range: 1 μS/cm (0.5 mg/L TDS)
- High Range 10 μS/cm (5 mg/L TDS)
Accuracy using factory calibration:
- ±8% of full-scale reading for low range
- ±3% of full-scale reading for mid range
- ±4% of full-scale reading for high range
Accuracy using custom calibration: ±2% of full-scale reading for each range
- Response Time: 98% of full-scale reading in 5 seconds, 100% of full-scale in 15 seconds
- Temperature Compensation: automatic from 5 to 35 °C
- Temperature Range (can be placed in): 0 to 80 °C
- Cell Constant: 1.0 cm-1
- Description: ABS body, parallel carbon (graphite) electrodes
- Dimensions: 12 mm OD and 150 mm length
Range:
- Low Range: 0 to 200 μS/cm (0 to 100 mg/L TDS)
- Mid Range: 0 to 2000 μS/cm (0 to 1000 mg/L TDS)
- High Range: 0 to 20,000 μS/cm (0 to 10,000 mg/L TDS)
Typical Resolution:
- Low Range: 0.1 μS/cm (0.05 mg/L TDS)
- Mid Range: 1 μS/cm (0.5 mg/L TDS)
- High Range 10 μS/cm (5 mg/L TDS)
Accuracy using factory calibration:
- ±8% of full-scale reading for low range
- ±3% of full-scale reading for mid range
- ±4% of full-scale reading for high range
Accuracy using custom calibration: ±2% of full-scale reading for each range
- Response Time: 98% of full-scale reading in 5 seconds, 100% of full-scale in 15 seconds
- Temperature Compensation: automatic from 5 to 35 °C
- Temperature Range (can be placed in): 0 to 80 °C
- Cell Constant: 1.0 cm-1
- Description: ABS body, parallel carbon (graphite) electrodes
- Dimensions: 12 mm OD and 150 mm length
Properties
- 152016
- CON-BTA
