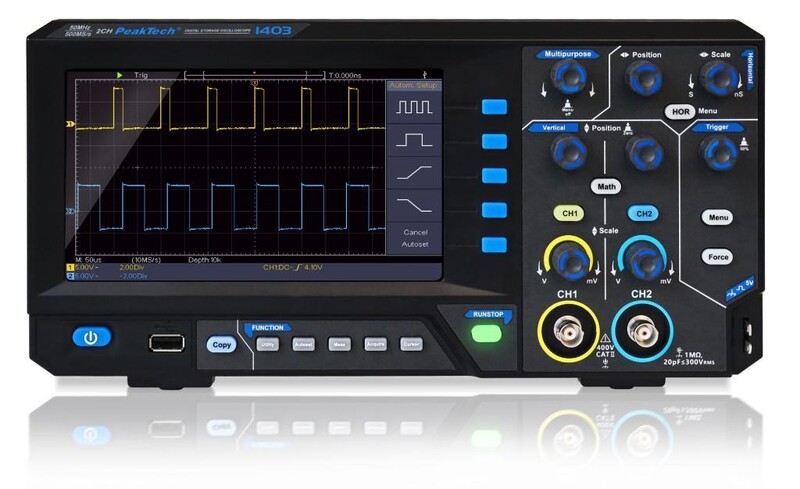

"«PeakTech® P 1403» 50 MHz / 2CH, 500MS/s Digital storage oscilloscope"
Specially developed for the education and hobby sector, this new series of fully-fledged digital storage oscilloscopes offers the best possible price/performance ratio without having to compromise on functionality or technical features. Whether Autoset and Autoscale, mathematical measurement functions, FFT, Cursor or XY mode and even a zoom function, all standard market functions are already integrated in this series. The data storage of the waveforms is either internal with memory for 16 waveforms or external on a USB memory in TXT, CSV or BIN format, which can be read out with the included software. Configurations can also be saved internally or screenshots of the display can be saved externally. The display of the waveforms can be achieved quickly and user-friendly through the Autoset function, via AutoScale the measured waveforms can be displayed even more precisely as required, whereby these settings can of course also be carried out completely manually via the key control.
Technical features
2 - channel oscilloscope with 50 MHz analogue bandwidth at max. 500 MS/s sampling rate
17,5 cm (7") TFT colour display with 800 x 480 pixels
USB device connection for real-time data transmission
USB host connection for external USB data carriers
Handy and flat housing design with carrying handle
Autoset function for user-friendly operation
Recording length of max. 10.000 points
Automatic measuring modes, XY mode and FFT function
Safety: EN 61010-1; CAT II 400V
Accessories: USB cable, software CD for Windows, mains cable, probes and operating instructions
Specially developed for the education and hobby sector, this new series of fully-fledged digital storage oscilloscopes offers the best possible price/performance ratio without having to compromise on functionality or technical features. Whether Autoset and Autoscale, mathematical measurement functions, FFT, Cursor or XY mode and even a zoom function, all standard market functions are already integrated in this series. The data storage of the waveforms is either internal with memory for 16 waveforms or external on a USB memory in TXT, CSV or BIN format, which can be read out with the included software. Configurations can also be saved internally or screenshots of the display can be saved externally. The display of the waveforms can be achieved quickly and user-friendly through the Autoset function, via AutoScale the measured waveforms can be displayed even more precisely as required, whereby these settings can of course also be carried out completely manually via the key control.
Technical features
2 - channel oscilloscope with 50 MHz analogue bandwidth at max. 500 MS/s sampling rate
17,5 cm (7") TFT colour display with 800 x 480 pixels
USB device connection for real-time data transmission
USB host connection for external USB data carriers
Handy and flat housing design with carrying handle
Autoset function for user-friendly operation
Recording length of max. 10.000 points
Automatic measuring modes, XY mode and FFT function
Safety: EN 61010-1; CAT II 400V
Accessories: USB cable, software CD for Windows, mains cable, probes and operating instructions
Properties
- P1403
