Features

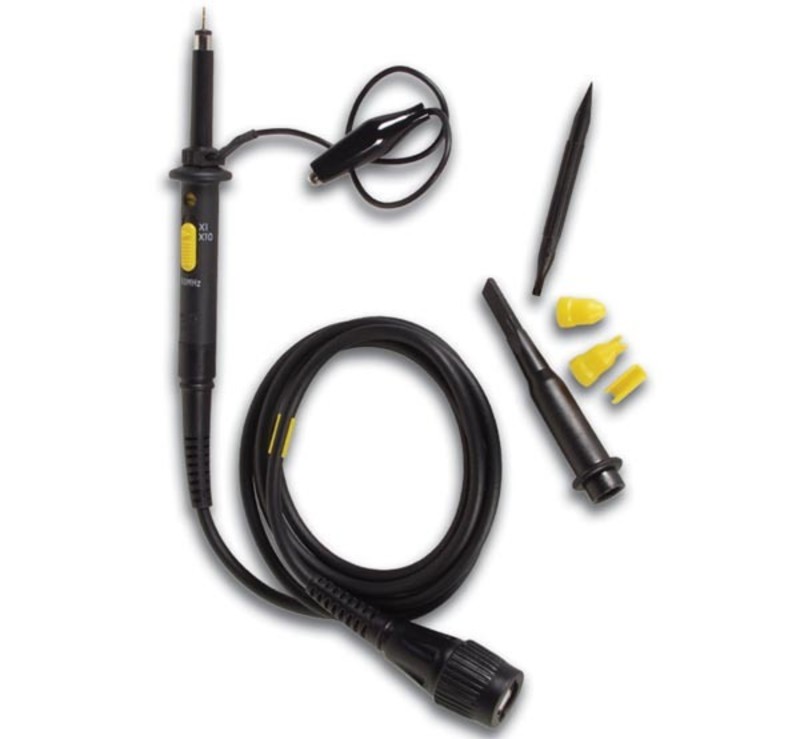

complete probe set
safety: conform with IEC-1010 cat II
attenuation: 1:1 or 1:10
Specifications
position x1:
attenuation: 1:1
bandwidth: DC to 15MHz
rise time: 23.3ns
input resistance: 1Mohm (input resistance scope)
input capacitance: 46pF + cap. scope
working voltage: 600V DC incl. peak AC derating with frequency
position REF: -
position x10:
attenuation: 1:10
bandwidth: DC to 60MHz
rise time: 5.8ns
input resistance: 10Mohm (if scope input = 1Mohm)
input capacitance: ±15pF
working voltage: 600V DC incl. peak AC derating with frequency
compensation range: 10 to 50pF
cable length: 4ft
remarks: with insulated BNC connector
complete probe set
safety: conform with IEC-1010 cat II
attenuation: 1:1 or 1:10
Specifications
position x1:
attenuation: 1:1
bandwidth: DC to 15MHz
rise time: 23.3ns
input resistance: 1Mohm (input resistance scope)
input capacitance: 46pF + cap. scope
working voltage: 600V DC incl. peak AC derating with frequency
position REF: -
position x10:
attenuation: 1:10
bandwidth: DC to 60MHz
rise time: 5.8ns
input resistance: 10Mohm (if scope input = 1Mohm)
input capacitance: ±15pF
working voltage: 600V DC incl. peak AC derating with frequency
compensation range: 10 to 50pF
cable length: 4ft
remarks: with insulated BNC connector
Properties
- PROBE60S/VEL
