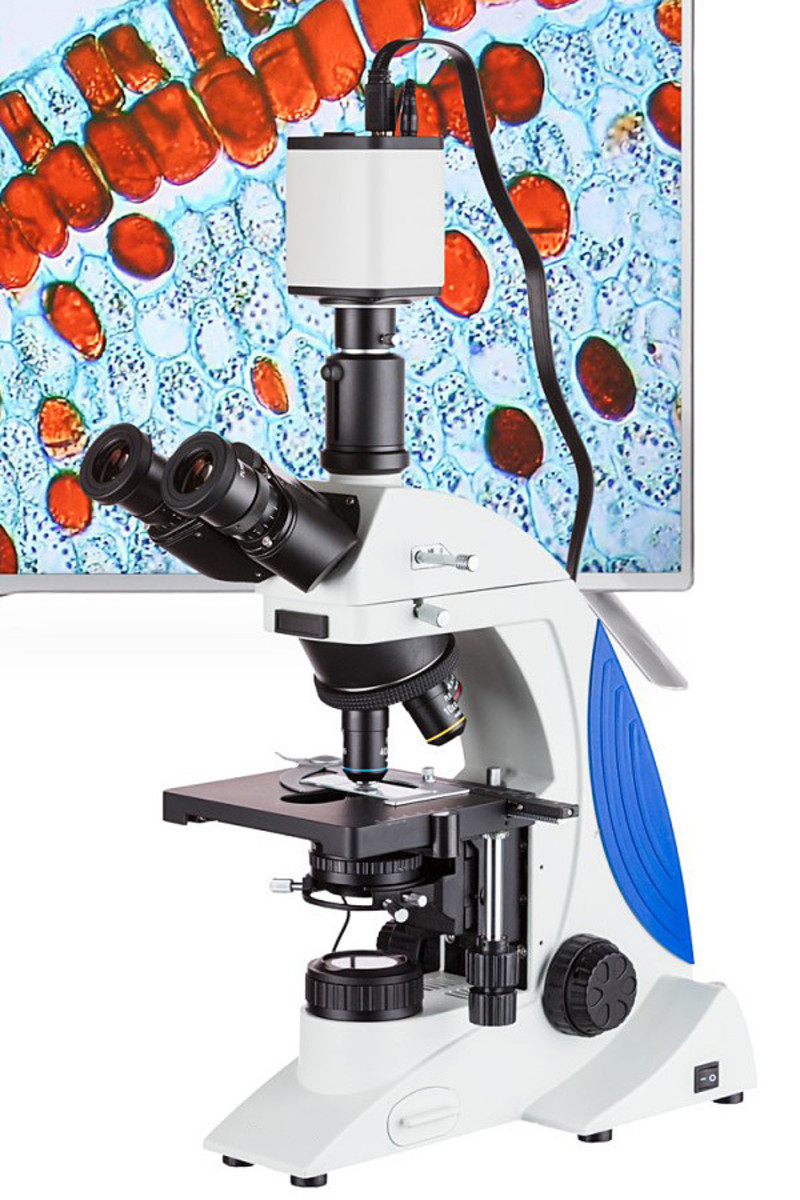

The Euromex HD-Ultra cameras offer the perfect solution to modern microscopy for industry and laboratories where real time images are needed. These HD image quality cameras can be used for biological, metallurgical or stereo microscopes.
HIGHLIGHTS
• HD 720p high definition color cameras
• Real time images directly on TV, monitor or beamer
• S tand alone or used via PC
• Built-in mouse-driven software
• C-mount interface
• HDMI, USB-2 and SD memory card
• Compatible with ImageFocus 4 software
Stand-alone
No need to open or start a computer or any computer knowledge to use a camera. This results in faster, more
flexible and compact working conditions. Simply plug the camera to a high resolution HDMI monitor or TV and the system is ready to go. Ideal for quality control systems etc
Although most settings are done automatically by the camera, one can use the supplied mouse to control the
camera via a user retrievable on-screen menu. The mouse is connected directly to the camera. Very intuitive controls allow users to capture and save images and to record videos on the integrated SD memory card
Computer controlled
Users who want more camera controls and more measurements functions, can connect the camera to a computer and take benefit of the power of the Euromex ImageFocus v4 software. It runs on Windows XP, Vista 7, 8 and 10, both 32 and 64 bits and is supplied with the camera package.
Besides live imaging and measuring functions on live and captured images, the software saves images in JPG,
TIFF or BMP formats or recording videos in .avi format.
The software allows measurements on linear sections, angles and surfaces, and also full control over the camera
parameters like manual or automatic exposure time, white balance, adjustments of brightness, contrast and saturation on live and captured images. Specific functions for fluorescence like histogram adjustments and combining captured fluorescence images are also included in ImageFocus 4 software
The cameras are equipped with high sensitive sensors for low and intense light conditions and also suitable for
coaxial illumination and machine vision applications
The real time images generated with these camera provide excellent color rendering with frame speeds up to 15 fps.
All settings are done automatically and therefore very user friendly. Once connected directly to a HDMI screen, TV or beamer with HDMI input, one can use the mouse-driven onboard software of the HD-Lite to capture and save images and videos (.avi format) on the integrated SD memory card input.
A menu can be displayed right on screen, for live viewing or capturing of images and videos. Captured images and videos can be very easily reviewed without any need of a computer and the HD-Lite even offers a full range of measuring options.
These key properties make the cameras ideal for real time inspection, education and live demonstrations
Cameras are supplied with a C-mount and can be connected to all Euromex microscopes using optional C-mount adapters
Users can also connect the HD-Lite camera to a computer using the USB-2 interface. The supplied ImageFocus 4 software allows more camera and image controls, annotations and measuring functions on live and captured images. Compatible with Windows XP, Vista 7, 8 and 10, both 32 and 64 bits
The HD-Lite cameras are supplied with USB-2 (A-A type) cable, USB-2 mouse, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, 1mm/100 (10μm/division) calibration slide and external power supply
The HD-Ultra cameras need a 0.45x C-mount adapter to connect them to microscopes (INCLUDED).
For other microscope tubes, please refer to our camera adapter guide. Supplied with Image Focus 4 software, Window XP and higher

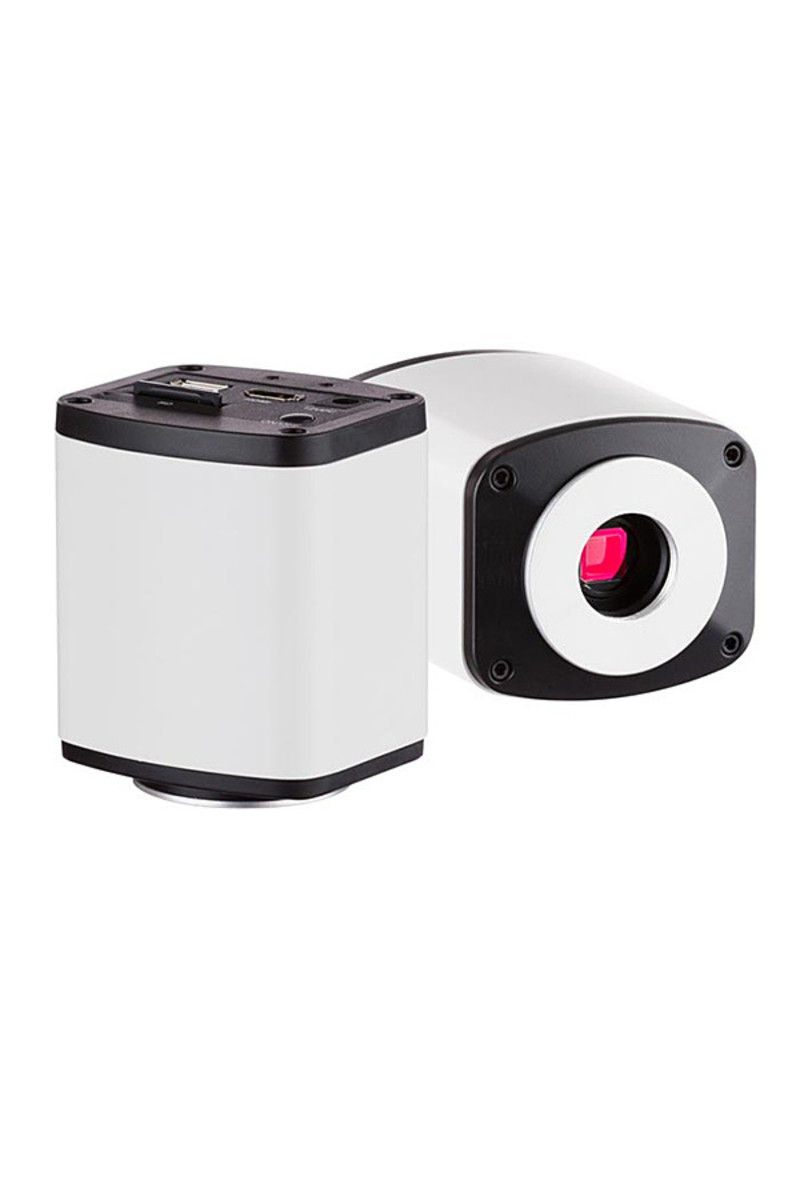

Color HD High defintion high speed camera 720p, 1/2,7 inch, standard SD card, HDMI and
USB-2 output with built-in capture software. Also suitable with ImageFocus 4 software
specifications:
HDMI 6.0 Mega pixels CMOS High sensitive sensor
Format 1/2,7 inch, HDTV 1080p (50/60 Hz)
Pixels 3264 x 1836 (capture mode), 1920 x 1080p pixels (live view),
1.280 × 720p pixels video recording mode
Scan mode Progressive scan. Sensitivity 510 mV
3D Noise Reduction function
White balance Automatic/manual

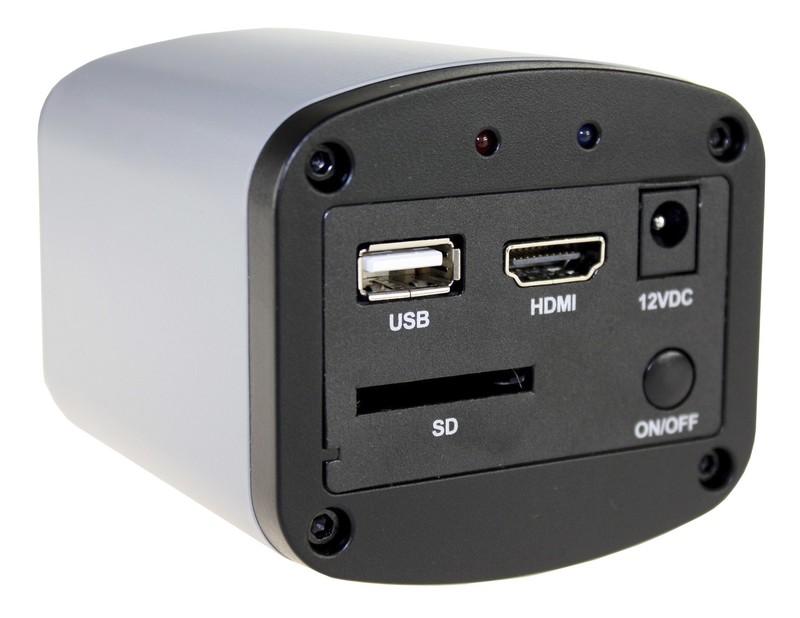

Video outputs Digital HDMI, USB 2 and standard high speed 8 Gb SD memory card for
external storage
Camera buttons On/Off

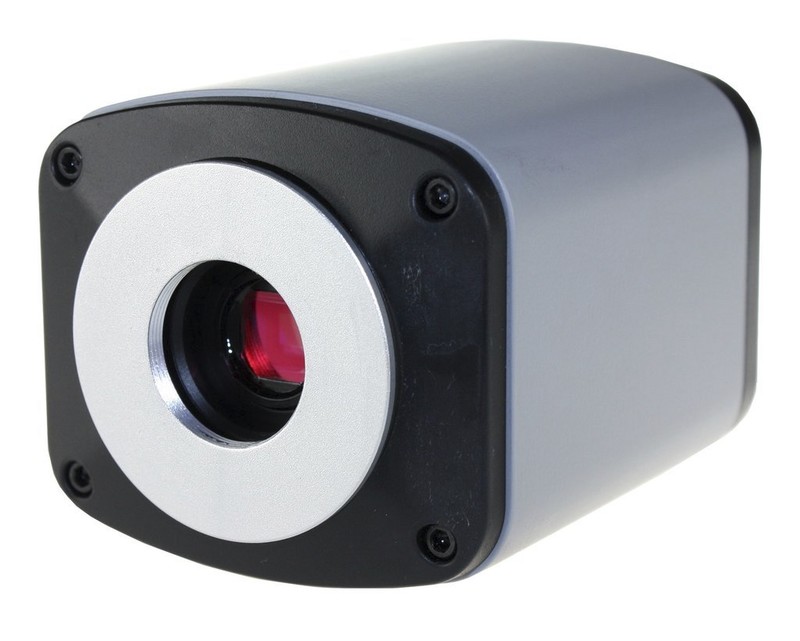

C-mount interface
Power supply External main adapter 220/110 Vac to 12 Vdc/2A
Operation 0 – 60° C, 45-85 % humidity
Storage temperature -20 to 70° Celsius
Supplied with HDMI cable, USB 2 cable, 12Vdc/2A power supply, high speed 8 Gb SD card
and USB-2 mouse
Supplied without photo adapter or objective
Supplied with built-in mouse-driven software for image capturing, 1080p HD video
recording, image comparison and browsing of captures images and videos
Suitable with ImageFocus 4 software, Windows XP and higher
HIGHLIGHTS
• HD 720p high definition color cameras
• Real time images directly on TV, monitor or beamer
• S tand alone or used via PC
• Built-in mouse-driven software
• C-mount interface
• HDMI, USB-2 and SD memory card
• Compatible with ImageFocus 4 software
Stand-alone
No need to open or start a computer or any computer knowledge to use a camera. This results in faster, more
flexible and compact working conditions. Simply plug the camera to a high resolution HDMI monitor or TV and the system is ready to go. Ideal for quality control systems etc
Although most settings are done automatically by the camera, one can use the supplied mouse to control the
camera via a user retrievable on-screen menu. The mouse is connected directly to the camera. Very intuitive controls allow users to capture and save images and to record videos on the integrated SD memory card
Computer controlled
Users who want more camera controls and more measurements functions, can connect the camera to a computer and take benefit of the power of the Euromex ImageFocus v4 software. It runs on Windows XP, Vista 7, 8 and 10, both 32 and 64 bits and is supplied with the camera package.
Besides live imaging and measuring functions on live and captured images, the software saves images in JPG,
TIFF or BMP formats or recording videos in .avi format.
The software allows measurements on linear sections, angles and surfaces, and also full control over the camera
parameters like manual or automatic exposure time, white balance, adjustments of brightness, contrast and saturation on live and captured images. Specific functions for fluorescence like histogram adjustments and combining captured fluorescence images are also included in ImageFocus 4 software
The cameras are equipped with high sensitive sensors for low and intense light conditions and also suitable for
coaxial illumination and machine vision applications
The real time images generated with these camera provide excellent color rendering with frame speeds up to 15 fps.
All settings are done automatically and therefore very user friendly. Once connected directly to a HDMI screen, TV or beamer with HDMI input, one can use the mouse-driven onboard software of the HD-Lite to capture and save images and videos (.avi format) on the integrated SD memory card input.
A menu can be displayed right on screen, for live viewing or capturing of images and videos. Captured images and videos can be very easily reviewed without any need of a computer and the HD-Lite even offers a full range of measuring options.
These key properties make the cameras ideal for real time inspection, education and live demonstrations
Cameras are supplied with a C-mount and can be connected to all Euromex microscopes using optional C-mount adapters
Users can also connect the HD-Lite camera to a computer using the USB-2 interface. The supplied ImageFocus 4 software allows more camera and image controls, annotations and measuring functions on live and captured images. Compatible with Windows XP, Vista 7, 8 and 10, both 32 and 64 bits
The HD-Lite cameras are supplied with USB-2 (A-A type) cable, USB-2 mouse, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, 1mm/100 (10μm/division) calibration slide and external power supply
The HD-Ultra cameras need a 0.45x C-mount adapter to connect them to microscopes (INCLUDED).
For other microscope tubes, please refer to our camera adapter guide. Supplied with Image Focus 4 software, Window XP and higher
Color HD High defintion high speed camera 720p, 1/2,7 inch, standard SD card, HDMI and
USB-2 output with built-in capture software. Also suitable with ImageFocus 4 software
specifications:
HDMI 6.0 Mega pixels CMOS High sensitive sensor
Format 1/2,7 inch, HDTV 1080p (50/60 Hz)
Pixels 3264 x 1836 (capture mode), 1920 x 1080p pixels (live view),
1.280 × 720p pixels video recording mode
Scan mode Progressive scan. Sensitivity 510 mV
3D Noise Reduction function
White balance Automatic/manual
Video outputs Digital HDMI, USB 2 and standard high speed 8 Gb SD memory card for
external storage
Camera buttons On/Off
C-mount interface
Power supply External main adapter 220/110 Vac to 12 Vdc/2A
Operation 0 – 60° C, 45-85 % humidity
Storage temperature -20 to 70° Celsius
Supplied with HDMI cable, USB 2 cable, 12Vdc/2A power supply, high speed 8 Gb SD card
and USB-2 mouse
Supplied without photo adapter or objective
Supplied with built-in mouse-driven software for image capturing, 1080p HD video
recording, image comparison and browsing of captures images and videos
Suitable with ImageFocus 4 software, Windows XP and higher
Properties
- VC.3031
