There are 7 variants of this article, view them here >

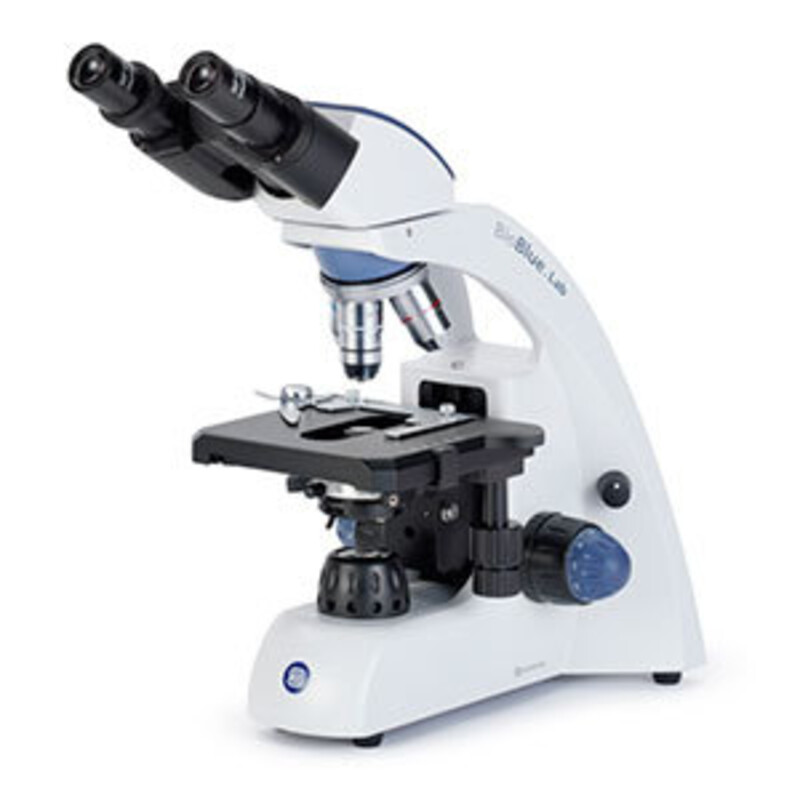

Binocular microscope for bright field with IOS plan 4x 10x S40x S100x-oil DIN infinity corrected objectives, integrated mechanical X-Y stage with NeoLED illumination and light intensity control
Eyepieces
Wide field eyepieces WF 10x/20mm
Observation tubes
Binocular 30° inclined Siedentopf tubes, 360° rotation. Dioptrical adjustment +/- 5 dioptre for one eyepiece. Infinity optical system.Interpupillary distance between eyepieces can be controlled from 48 to 75mm
Nosepiece
Reversed backwards oriented nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
Objectives IOS Plan DIN objectives 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x-oil N.A. 1.25. The S40x and S100x-oil objectives are spring-mounted
Stage
140x150 mm stage with rackless mechanical X-Y stage. The translation range of the mechanical X-Y stage is 75 x 50 mm
Focus control
Coaxial coarse- and fine adjustment knobs on both sides with 2 µm graduations. Friction of focus control can be adjusted
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Illumination
NeoLED illumination with intensity control. Internal 85-240 V power supply
Packaging
Complete with 5 ml immersion oil, spare fuse, manual and dustcover in styrofoam case
Eyepieces
Wide field eyepieces WF 10x/20mm
Observation tubes
Binocular 30° inclined Siedentopf tubes, 360° rotation. Dioptrical adjustment +/- 5 dioptre for one eyepiece. Infinity optical system.Interpupillary distance between eyepieces can be controlled from 48 to 75mm
Nosepiece
Reversed backwards oriented nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
Objectives IOS Plan DIN objectives 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x-oil N.A. 1.25. The S40x and S100x-oil objectives are spring-mounted
Stage
140x150 mm stage with rackless mechanical X-Y stage. The translation range of the mechanical X-Y stage is 75 x 50 mm
Focus control
Coaxial coarse- and fine adjustment knobs on both sides with 2 µm graduations. Friction of focus control can be adjusted
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Illumination
NeoLED illumination with intensity control. Internal 85-240 V power supply
Packaging
Complete with 5 ml immersion oil, spare fuse, manual and dustcover in styrofoam case
Properties
- BB.1152-PLI
Filter
7 of 7 visible.
| Product code | Magnification | Eyepieces | Cross table | Price | Amount | ||
|---|---|---|---|---|---|---|---|
|
BB.1152-PL | 40x/100x/400x/1000x | Bino | 694,00 €/pieces |
|
||
|
|
BB.1152-PLI | 40x/100x/1400x/1000x | Bino | 743,00 €/pieces |
|
||
|
|
BB.1152-PLPHI | 100x/200x/400x/1000x | Bino | 1.678,00 €/pieces |
|
||
|
|
BB.1153-PL | 40x/100x/400x/1000x | Trino | 781,00 €/pieces |
|
||
|
|
BB.1153-PLI | 40x/100x/400x/1000x | Trino | 809,00 €/pieces |
|
||
|
|
BB.1153-PLPH | 100x/200x/400x/1000x | Trino | 1.461,00 €/pieces |
|
||
|
|
BB.1153-PLPHI | 100x/200x/400x/1000x | Trino | 1.763,00 €/pieces |
|
3 Variants
From
621,00 €
/ pieces
| Name | Link |
|---|---|
| BioBlue.Lab Product Data Sheet English | BioBlue.Lab Product Data Sheet English (PDF - 2.6 MB) |
