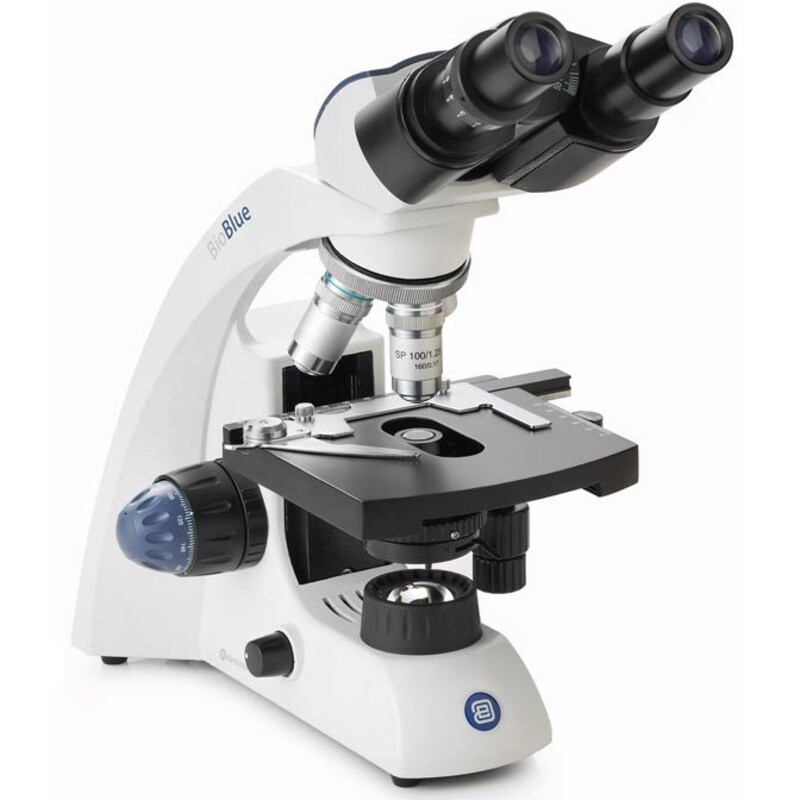

These modern microscopes were specifically developed for education with a special attention for ergonomics and quality. The eyepieces are secured and equipped with an adjustable specimen protection.
Eyepieces
Secured wide field eyepieces WF 10x/18 with fixed pointer
Observation tube
Binocular 30° inclined tube, 360° rotation. Tube length 160 mm
Nosepiece
Reversed nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
Objectives
Achromatic color coded semi-plan DIN objectives 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. oil. The S40x and S100x-oil objectives are spring-mounted
Stages
A 130x130 mm stage with double layered mechanical X-Y stage. The translation range of the mechanical X-Y stage is 70x28 mm
Focus control
Coaxial coarse- and fine adjustment knobs on both sides with 0.002 mm graduations. Friction of focus control can be adjusted
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Illumination LED 1 Watt illumination with intensity control. Internal power supply and charger for 85-230V operation (no external power supply necessary) and 3 NiMH AA type batteries
Packaging
Complete with spare fuse, manual and dustcover in styrofoam case
Models equipped with S100x-oil objectives are delivered with 5 ml immersion oil
Eyepieces
Secured wide field eyepieces WF 10x/18 with fixed pointer
Observation tube
Binocular 30° inclined tube, 360° rotation. Tube length 160 mm
Nosepiece
Reversed nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
Objectives
Achromatic color coded semi-plan DIN objectives 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. oil. The S40x and S100x-oil objectives are spring-mounted
Stages
A 130x130 mm stage with double layered mechanical X-Y stage. The translation range of the mechanical X-Y stage is 70x28 mm
Focus control
Coaxial coarse- and fine adjustment knobs on both sides with 0.002 mm graduations. Friction of focus control can be adjusted
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Illumination LED 1 Watt illumination with intensity control. Internal power supply and charger for 85-230V operation (no external power supply necessary) and 3 NiMH AA type batteries
Packaging
Complete with spare fuse, manual and dustcover in styrofoam case
Models equipped with S100x-oil objectives are delivered with 5 ml immersion oil
Properties
- 192062
