The Oxion series has been specifically designed for the Exact- and Biomedical Sciences
Thanks to the high resolving power, a 3 Watt transmitted LED illumination, a 100 Watt Mercury fluorescence epi-illumination, multiple phase contrast configurations and the optional Apochromatic objectives, these microscopes can be used for all kind of demanding applications as well in fundamental research.

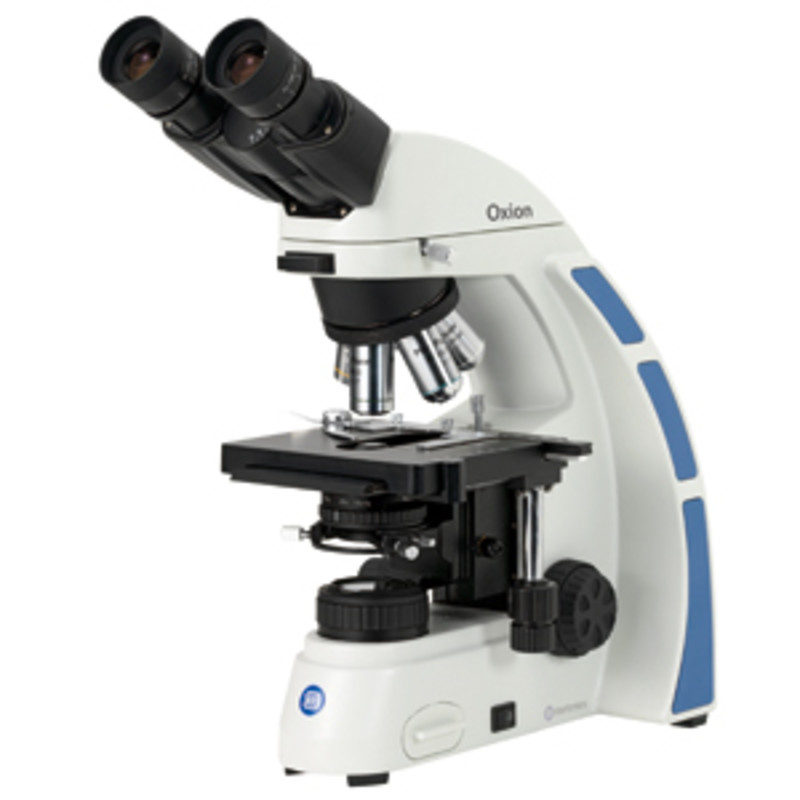

Binocular microscope with achromatic Plan 4x, 10x, S40x objectives and 3 Watt LED illumination
Eyepieces
Paired DIN KHWF 10x/22 eyepieces, also suitable for people wearing glasses. Both eyepieces are equipped with dioptre adjustment
Head
360°rotatable binocular with ergonomic 30°inclined swiveling Siedentopf tubes with upper and lower position. Adjustable interocular distance from 50 to 73 mm
Nosepiece
Suitable for 5 objectives, fitted with ball-bearings with inside click stop
Objectives Infinity corrected Plan objectives 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65. The S40x objective is spring-mounted
Stand
With coaxial coarse - and fine adjustments with graduation scale. Adjustable specimen protection and adjustable tension for coarse adjustment knob
Stage
Mechanical flat-top 150 x 140 mm stage fitted with ball-bearings and with 76 x 50 mm X and Y-translation, 0.1 mm scale and coaxial controls. Detachable specimen holder
Condenser
In height adjustable Abbe condenser N.A. 1.25 with iris diaphragm
Illumination
3 Watt LED adjustable Köhler illumination with field diaphragm and built-in power supply for 85-240 Volt operation
Packing
With dustcover in styrofoam case. Weight approximately 10kg
Thanks to the high resolving power, a 3 Watt transmitted LED illumination, a 100 Watt Mercury fluorescence epi-illumination, multiple phase contrast configurations and the optional Apochromatic objectives, these microscopes can be used for all kind of demanding applications as well in fundamental research.
Binocular microscope with achromatic Plan 4x, 10x, S40x objectives and 3 Watt LED illumination
Eyepieces
Paired DIN KHWF 10x/22 eyepieces, also suitable for people wearing glasses. Both eyepieces are equipped with dioptre adjustment
Head
360°rotatable binocular with ergonomic 30°inclined swiveling Siedentopf tubes with upper and lower position. Adjustable interocular distance from 50 to 73 mm
Nosepiece
Suitable for 5 objectives, fitted with ball-bearings with inside click stop
Objectives Infinity corrected Plan objectives 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65. The S40x objective is spring-mounted
Stand
With coaxial coarse - and fine adjustments with graduation scale. Adjustable specimen protection and adjustable tension for coarse adjustment knob
Stage
Mechanical flat-top 150 x 140 mm stage fitted with ball-bearings and with 76 x 50 mm X and Y-translation, 0.1 mm scale and coaxial controls. Detachable specimen holder
Condenser
In height adjustable Abbe condenser N.A. 1.25 with iris diaphragm
Illumination
3 Watt LED adjustable Köhler illumination with field diaphragm and built-in power supply for 85-240 Volt operation
Packing
With dustcover in styrofoam case. Weight approximately 10kg
Properties
- OX.3020
Filter
19 of 19 visible.
| Product code | Magnification | Eyepieces | Cross table | Price | Amount | ||
|---|---|---|---|---|---|---|---|
|
OX.3015 | 40x/100x/400x/1000x | Trino | 1.213,00 €/pieces |
|
||
|
OX.3020 | 40x/100x/400x | Bino | 1.269,00 €/pieces |
|
||
|
OX.3030 | 40x/100x/400x | Bino | 1.525,00 €/pieces |
|
||
|
OX.3035 | 40x/100x/400x/1000x | Trino | 1.580,00 €/pieces |
|
||
|
OX.3040 | 100x/200x/400x/1000x | Bino | 2.068,00 €/pieces |
|
||
|
OX.3042 | 100x/400x/1000x | Bino | 2.008,00 €/pieces |
|
||
|
OX.3045 | 100x/200x/400x/1000x | Trino | 2.190,00 €/pieces |
|
||
|
OX.3047 | 100x/400x/1000x | Trino | 2.130,00 €/pieces |
|
||
|
OX.3048 | 2.190,00 €/pieces |
|
||||
|
OX.3050 | 40x/100x/400x | Bino | 3.188,00 €/pieces |
|
||
|
OX.3055 | 40x/100x/400x | Trino | 3.309,00 €/pieces |
|
||
|
|
OX.3060 | 40x/100x/400x/1000x | Bino | 4.247,00 €/pieces |
|
||
|
|
OX.3064 | 40x/100x/400x | Trino | 2.068,00 €/pieces |
|
||
|
OX.3065 | 40x/100x/400x/1000x | Bino | 5.626,00 €/pieces |
|
||
|
OX.3070 | 6.666,00 €/pieces |
|
||||
|
OX.3075 | 6.786,00 €/pieces |
|
||||
|
OX.3080 | 8.270,00 €/pieces |
|
||||
|
OX.3085 | 8.632,00 €/pieces |
|
||||
|
OX.3120 | 2.350,75 €/pieces |
|
