Function and Applications

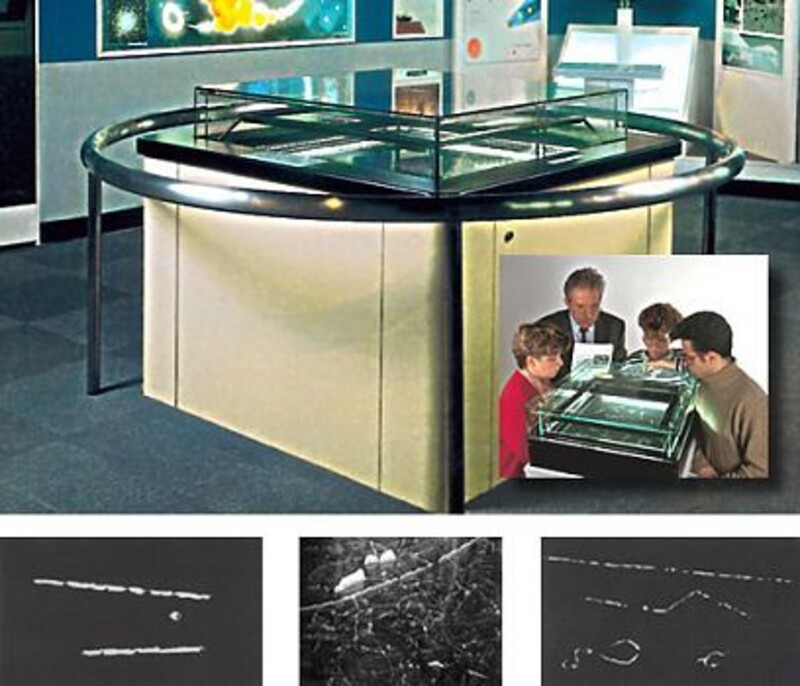

Continuously working Large-Diffusion cloud chamber on box; the instrument can be set up by itself.
Benefits
The Large-Diffusion cloud chamber with an 8O x 8O cm active observation surface are hermetically closed units.
They each consist of a pedestal for the chamber on top of which lies the observation chamber.
The Chamber's pedestal holds the refrigerating unit, power supply, a tank for alcohol, a pump for alcohol and a timer.
On top of the pedestal, the observation chamber is installed.
The top and the sides of the observation chamber are made of glass.
Underneath the upper sheet of glass, thin heating wires are installed, which heat up this part of the chamber and thus keep the chamber from misting over.
These wires simultaneously serve as high-voltage mesh to gather up ions.
Equipment and technical data
Dimensions: Height: 126 cm, Width: 128 cm, Depth: 128 cm
Height of pedestal: 10 cm
Active observation surface: (8O × 8O) cm
Weight: approx. 450 kg
Power input: approx. 2.0 kVA
Continuously working Large-Diffusion cloud chamber on box; the instrument can be set up by itself.
Benefits
The Large-Diffusion cloud chamber with an 8O x 8O cm active observation surface are hermetically closed units.
They each consist of a pedestal for the chamber on top of which lies the observation chamber.
The Chamber's pedestal holds the refrigerating unit, power supply, a tank for alcohol, a pump for alcohol and a timer.
On top of the pedestal, the observation chamber is installed.
The top and the sides of the observation chamber are made of glass.
Underneath the upper sheet of glass, thin heating wires are installed, which heat up this part of the chamber and thus keep the chamber from misting over.
These wires simultaneously serve as high-voltage mesh to gather up ions.
Equipment and technical data
Dimensions: Height: 126 cm, Width: 128 cm, Depth: 128 cm
Height of pedestal: 10 cm
Active observation surface: (8O × 8O) cm
Weight: approx. 450 kg
Power input: approx. 2.0 kVA
Properties
- P0904393
- 09043-90
