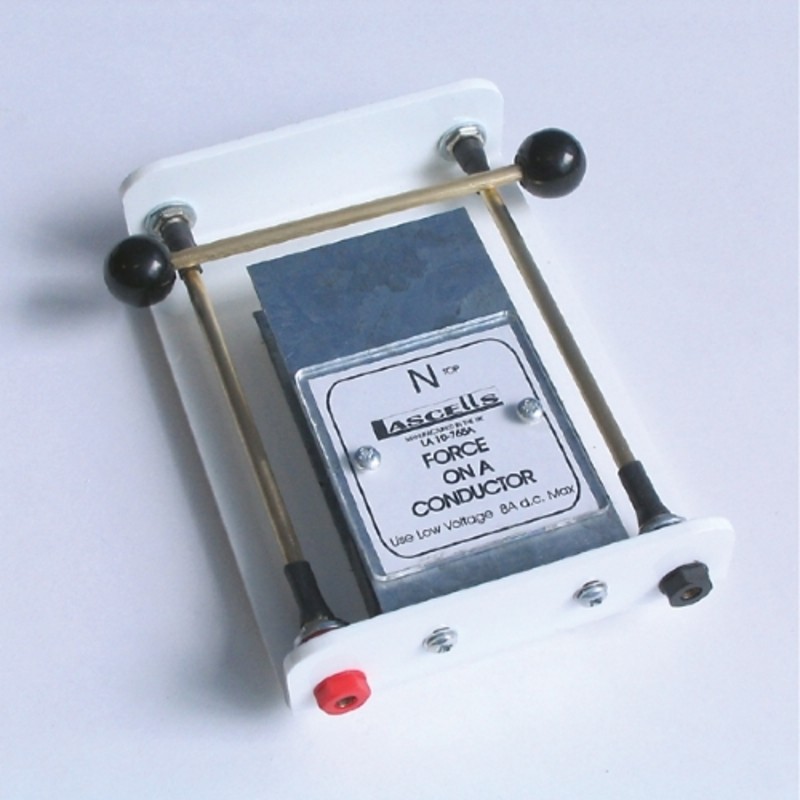

This is a new version of a traditional piece of equipment for demonstrating the effect of a current flowing in a conductor in the presence of a magnetic field. Connection is made via the 4mm sockets attached to the side rails. When a current of up to 8A flows the crossbar rolls one way or the other under the action of the electro-magnetic force. With clearly labelled poles to the magnet. Low voltage bench PSU required.
• Demonstrate Flemming's left hand rule
• Demonstrates presence of magnetic field around a current carrying wire
• Demonstrate Flemming's left hand rule
• Demonstrates presence of magnetic field around a current carrying wire
Properties
- XMG850010/LAS
