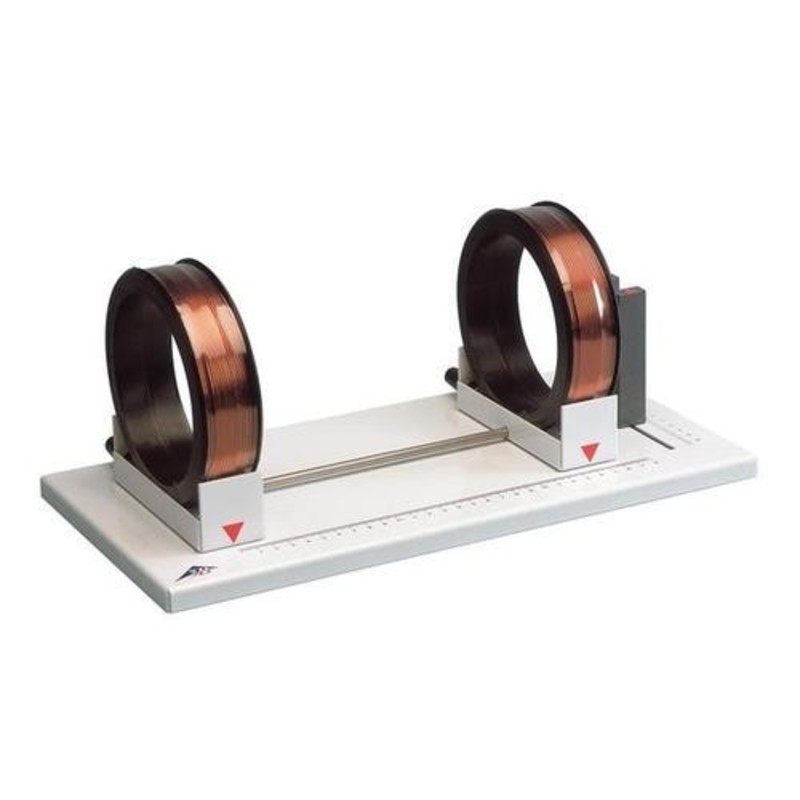

The Helmholtz Coils generate a homogeneous magnetic field and can be used to determine the geometric properties of the Helmholtz configuration. Two coils are arranged parallel to each other and mounted on a robust metal base plate.
Features:
Base plate includes a pocket for a magnetic field meter
One coil and its holder are movable
Coils can be connected in parallel or series
Two scales are printed on the base plate for accurate measurements
Specifications:
Number of turns: 100 each
Average coil diameter: 125 mm
Coil width: 33 mm
Terminals: 4-mm safety sockets
Max permissible current: 5 A
Max coil separation: 240 mm
Max magnetic field: approx. 70 G @ 6 cm separation
Scale division: mm
Base plate: 400 mm x 200 mm
Features:
Base plate includes a pocket for a magnetic field meter
One coil and its holder are movable
Coils can be connected in parallel or series
Two scales are printed on the base plate for accurate measurements
Specifications:
Number of turns: 100 each
Average coil diameter: 125 mm
Coil width: 33 mm
Terminals: 4-mm safety sockets
Max permissible current: 5 A
Max coil separation: 240 mm
Max magnetic field: approx. 70 G @ 6 cm separation
Scale division: mm
Base plate: 400 mm x 200 mm
Properties
- 1003193/3B
- U21901
