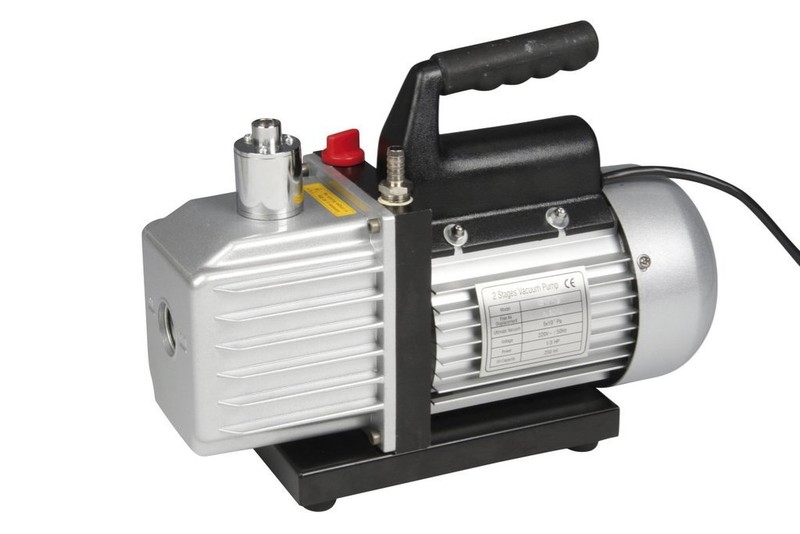

Double-stage electric rotary vane vacuum pump. Oil is included for initial use, however additional oil (069530) is recommended for continuous maintenance.
Technical data:
Mains operated: 220 V AC, 50 Hz, 245 W
Free air displacement: 70 L/min.
Ultimate vacuum: 0.5 Pa (0.05 mBar)
Motor power: 1/3 HP
Fittings sizes: 8 mm hose
pipe Oil: 220 mL
Dimensions LxWxH: 315 x 240 x 120 mm
Technical data:
Mains operated: 220 V AC, 50 Hz, 245 W
Free air displacement: 70 L/min.
Ultimate vacuum: 0.5 Pa (0.05 mBar)
Motor power: 1/3 HP
Fittings sizes: 8 mm hose
pipe Oil: 220 mL
Dimensions LxWxH: 315 x 240 x 120 mm
Properties
- F069525
