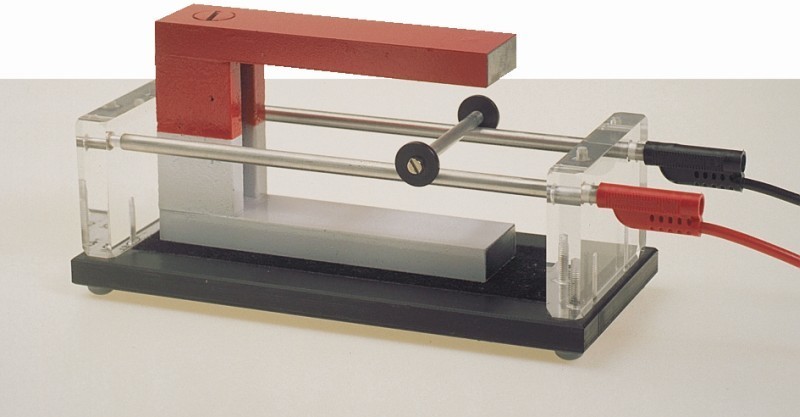

This apparatus demonstrates the force on a conductor in a magnetic field.
It consists of a pair of metal rails with 4 mm terminals.
A light aluminium axle can roll freely along the rails and thus completes the electrical contact between them.
A strong U-shaped magnet is required to complete the setup, use e.g. item no. 3315.00 (not included).
Place the axle on the rails between the poles of the magnet.
When a current flows through the axle, it will be influenced by a force perpendicular
to both the axle and the magnetic field – i.e. along the rails.
Dimensions: 190 x 85 x 65 mm
It consists of a pair of metal rails with 4 mm terminals.
A light aluminium axle can roll freely along the rails and thus completes the electrical contact between them.
A strong U-shaped magnet is required to complete the setup, use e.g. item no. 3315.00 (not included).
Place the axle on the rails between the poles of the magnet.
When a current flows through the axle, it will be influenced by a force perpendicular
to both the axle and the magnetic field – i.e. along the rails.
Dimensions: 190 x 85 x 65 mm
Properties
- F455510
- 838042
