Function and Applications

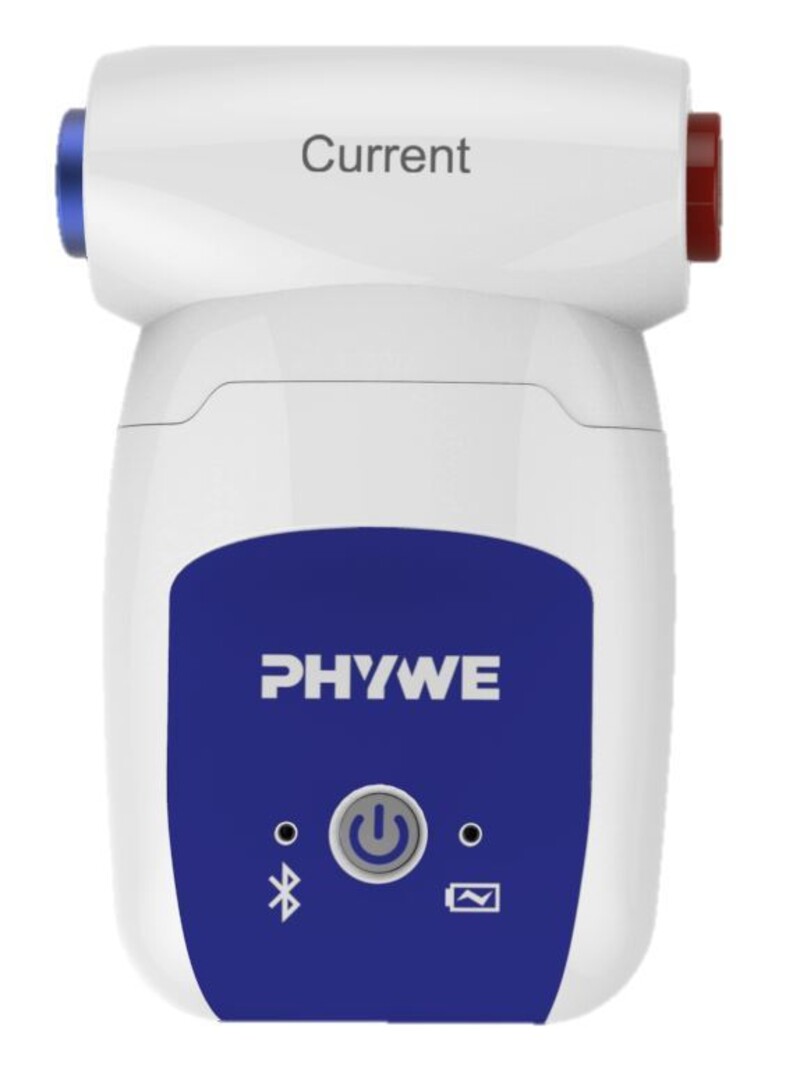

All-in-One Sensor for wireless data acquisition via Bluetooth 4 and wired via USB. Suitable for smartphones (iOS and Android), tablets (iOS, Android and Windows) and desktop PCs (Windows) in combination with the free App PHYWE measure.
The sensor can be used to measure the current intensity in circuits and plot it directly. In this way, students develop a deeper understanding of the basic concepts of electricity.
Benefits
All-in-One device, no interface needed
Plug & Play: Just switch on and start to measure
Latest technology: Bluetooth 4
Perfectly tuned to PHYWE student experiments
Automatic sensor recognition
Excellent price-performance ratio
Equipment and Technical Data
Range: +/- 1 A
Resolution: 0.5 mA
Samplerate: 1000 Hz (10000 Hz via USB)
Short circuit proof up to 3 A
All-in-One Sensor for wireless data acquisition via Bluetooth 4 and wired via USB. Suitable for smartphones (iOS and Android), tablets (iOS, Android and Windows) and desktop PCs (Windows) in combination with the free App PHYWE measure.
The sensor can be used to measure the current intensity in circuits and plot it directly. In this way, students develop a deeper understanding of the basic concepts of electricity.
Benefits
All-in-One device, no interface needed
Plug & Play: Just switch on and start to measure
Latest technology: Bluetooth 4
Perfectly tuned to PHYWE student experiments
Automatic sensor recognition
Excellent price-performance ratio
Equipment and Technical Data
Range: +/- 1 A
Resolution: 0.5 mA
Samplerate: 1000 Hz (10000 Hz via USB)
Short circuit proof up to 3 A
Properties
- P1290201
- 12902-01
- Cobra SMARTsense
