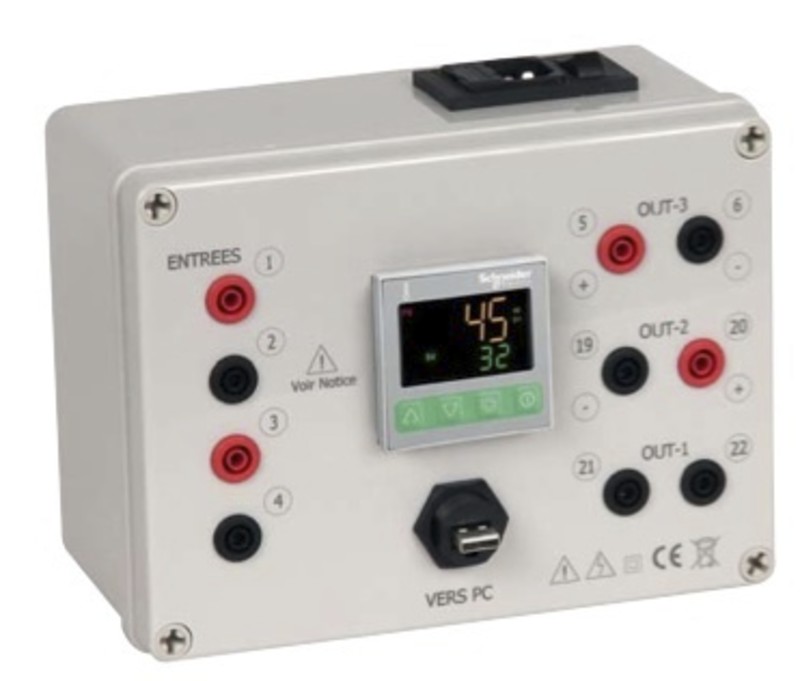

The regulator unit controls in all-or-nothing
the supply of the load from a 4-20mA signal.
EXAMPLES OF USE Enter the order value directly in the regulator.
When the 4-20mA signal from the sensor reaches the order value, the state of the dry contact changes and opens (or closes) the supply circuit of the load (programming of the contact state: NO or NC).
Supply of the unit in 230V (power cord)
The communicating version has the same features and includes in addition a possible programming by software and retrieving datas
(files + curves).
• LCD display in 11 segments of 3 colours (green, red, orange)
• 1 0-10V input, 4-20mA thermocouple on safety sockets configurable from the keyboard or the software.
• 1relay output dedicated to heating or cooling on safety sockets.
• 1 All-or-nothing alarm output on safety sockets
• Auto setting or automatic reset
• Hysteresis functions for the activation or deactivation control
• 230 VAC power supply by power cord
• ZELIO temperature software + connection cable to PC supplied
• Dims: 150 x 200 x 100 mm
the supply of the load from a 4-20mA signal.
EXAMPLES OF USE Enter the order value directly in the regulator.
When the 4-20mA signal from the sensor reaches the order value, the state of the dry contact changes and opens (or closes) the supply circuit of the load (programming of the contact state: NO or NC).
Supply of the unit in 230V (power cord)
The communicating version has the same features and includes in addition a possible programming by software and retrieving datas
(files + curves).
• LCD display in 11 segments of 3 colours (green, red, orange)
• 1 0-10V input, 4-20mA thermocouple on safety sockets configurable from the keyboard or the software.
• 1relay output dedicated to heating or cooling on safety sockets.
• 1 All-or-nothing alarm output on safety sockets
• Auto setting or automatic reset
• Hysteresis functions for the activation or deactivation control
• 230 VAC power supply by power cord
• ZELIO temperature software + connection cable to PC supplied
• Dims: 150 x 200 x 100 mm
Properties
- REGUL-S/ELE
