QUICK-G is a set of modules (H-250mm) for studying a compensated single-phase transformer 230V with three secondary windings.
EDUCATIONAL OBJECTIVES
• Study a single-phase transformer with no load, in short-circuit and loaded.
• Measurement of the different electrical values at the primary and secondary
windings.
• Calculation of the powers, efficiency, transformation ratio, and losses of
the transformer.

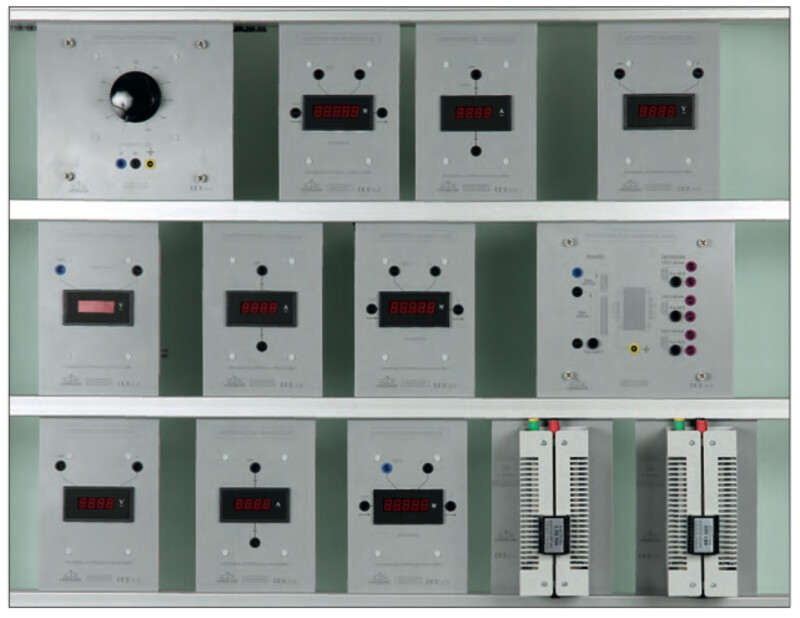

Comprises
• 1 Variable autotransformer module 0-250V AC - 5A.
• 1 Single-phase transformer module 140VA.
Primary winding 230V, 1 secondary winding 15V/3.6A
and 2 fuse-protected separate secondary windings 12V/3.6A.
• 3 Voltage digital display modules.
• 3 Current digital display modules.
• 3 Power digital display modules.
• 1 Variable rheostats module 0-22 ohms.
• 1 Variable rheostats module 0-3.3 ohms.
• 1 set of safety leads for carrying out the different practical works.
Mains power supply 230V - 50/60Hz. 3-metre lead with plug 2P+E.
Proposed Practical Works
• Creation of the wiring diagram with measuring devices.
• Study of the use of the compensation winding at the primary.
• Readings of the electrical values of the transformer with no-load.
• Readings of the electrical values of the transformer with load.
• Calculations of the electrical characteristics, power and the transformation ratio.
• Plots of the curves of electrical power and efficiency.
EDUCATIONAL OBJECTIVES
• Study a single-phase transformer with no load, in short-circuit and loaded.
• Measurement of the different electrical values at the primary and secondary
windings.
• Calculation of the powers, efficiency, transformation ratio, and losses of
the transformer.
Comprises
• 1 Variable autotransformer module 0-250V AC - 5A.
• 1 Single-phase transformer module 140VA.
Primary winding 230V, 1 secondary winding 15V/3.6A
and 2 fuse-protected separate secondary windings 12V/3.6A.
• 3 Voltage digital display modules.
• 3 Current digital display modules.
• 3 Power digital display modules.
• 1 Variable rheostats module 0-22 ohms.
• 1 Variable rheostats module 0-3.3 ohms.
• 1 set of safety leads for carrying out the different practical works.
Mains power supply 230V - 50/60Hz. 3-metre lead with plug 2P+E.
Proposed Practical Works
• Creation of the wiring diagram with measuring devices.
• Study of the use of the compensation winding at the primary.
• Readings of the electrical values of the transformer with no-load.
• Readings of the electrical values of the transformer with load.
• Calculations of the electrical characteristics, power and the transformation ratio.
• Plots of the curves of electrical power and efficiency.
Properties
- QUICK-G/ELE
