TRANSPORT COSTS: ON REQUEST
(cabinet weighs +/- 250kg)
Safe storage of flammable hazardous materials in workrooms in accordance with statutory regulations
Function / construction:
- Robust and durable: stable outer casing made of powder-coated fine sheet steel, 3-fold door suspension, full locking mechanism and safety elements for corrosion protection mounted outside the storage area
- Reliable and safe (model .WDAS): the door latches into the fitted door securing device for safe insertion and removal of containers
- No unauthorised access: door lockable with profile cylinder (suitable for central door locking system)
- Easy to position: adjustable feet for compensating minor unevenness in the floor (up to 10 mm)
- Ventilation: integrated ventilation system for connection (NW 75) to a mechanical extraction system

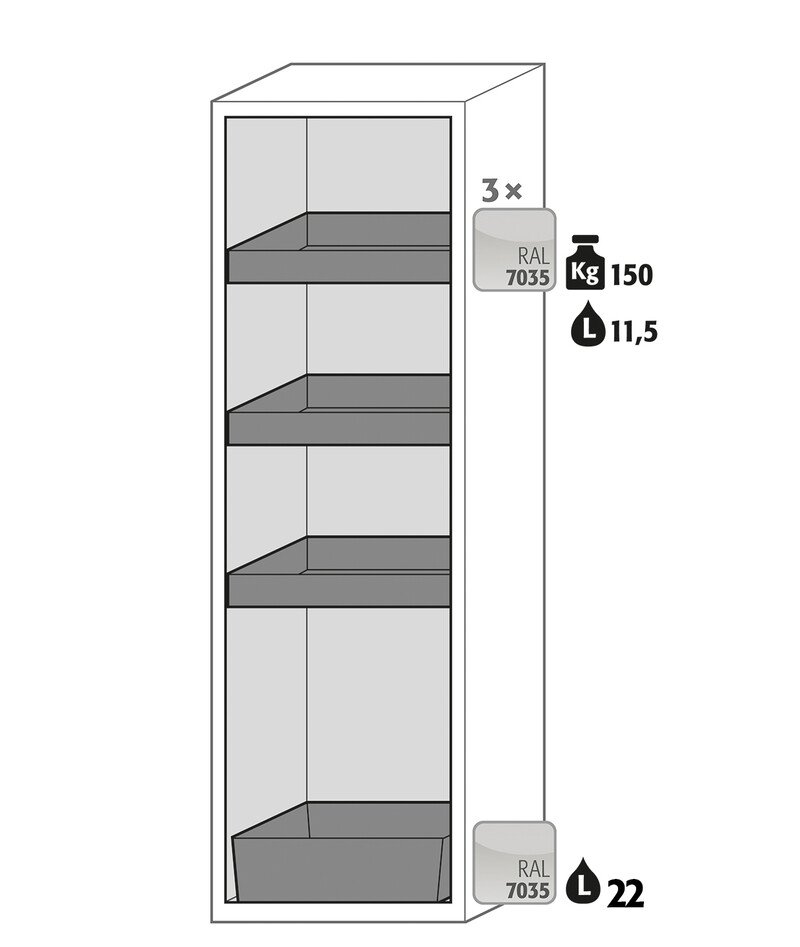

Available interior components:
- Drawers : large capacity, optimal use of available storage capacity
- Insert trays (PE or PP)
--Shelves with 75 kg capacity
- Storage boxes
- Grid as storage surface
- Metal-free drip trays and sump trays
- Shelves with 150 kg load capacity
- Floor drip tray
Technical data S90.196.060(.WDAS)
External dimensions W x D x H mm 596 x 616 x 1968
Internal dimensions W x D x H mm 450 x 524 x 1742
Weight without interior kg 260
Air exchange rate 10-way m³/h 4
Pressure loss total (EK5/AK4) Pa 5
Pressure loss with 10 air changes Pa 5
Maximum load kg 600
Floor load kg/m² 893
Transport base (optional)
Clearance height mm 95
Drive-in width mm 2 x 224
(cabinet weighs +/- 250kg)
Safe storage of flammable hazardous materials in workrooms in accordance with statutory regulations
Function / construction:
- Robust and durable: stable outer casing made of powder-coated fine sheet steel, 3-fold door suspension, full locking mechanism and safety elements for corrosion protection mounted outside the storage area
- Reliable and safe (model .WDAS): the door latches into the fitted door securing device for safe insertion and removal of containers
- No unauthorised access: door lockable with profile cylinder (suitable for central door locking system)
- Easy to position: adjustable feet for compensating minor unevenness in the floor (up to 10 mm)
- Ventilation: integrated ventilation system for connection (NW 75) to a mechanical extraction system
Available interior components:
- Drawers : large capacity, optimal use of available storage capacity
- Insert trays (PE or PP)
--Shelves with 75 kg capacity
- Storage boxes
- Grid as storage surface
- Metal-free drip trays and sump trays
- Shelves with 150 kg load capacity
- Floor drip tray
Technical data S90.196.060(.WDAS)
External dimensions W x D x H mm 596 x 616 x 1968
Internal dimensions W x D x H mm 450 x 524 x 1742
Weight without interior kg 260
Air exchange rate 10-way m³/h 4
Pressure loss total (EK5/AK4) Pa 5
Pressure loss with 10 air changes Pa 5
Maximum load kg 600
Floor load kg/m² 893
Transport base (optional)
Clearance height mm 95
Drive-in width mm 2 x 224
Properties
- 111041/LAG
- S90.196.060(.WDAS)
