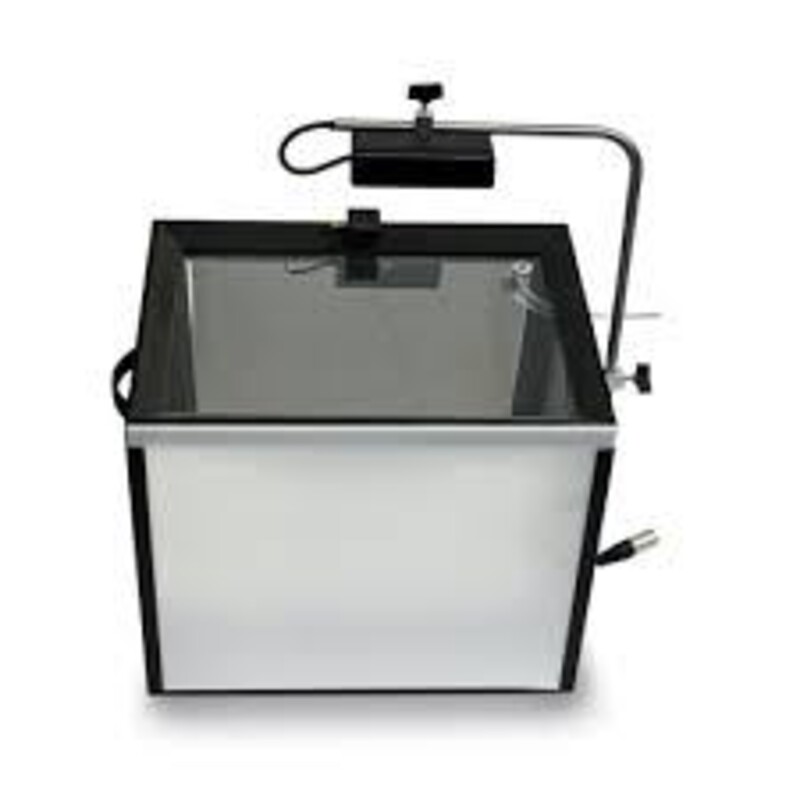

Equipment set with ripple tank for demonstrating and investigating properties
of waves using the example of waves in water. The ripple tank is a shallow tank
with a glass floor inside an aluminium frame, which can be filled with water.
The tank can be aligned such that it is horizontal by means of adjustable feet.
It is possible to generate both circular or straight waves in the tank by means
of localised oscillations in air pressure and the frequency and amplitude of those
waves can be set up using a control unit. An external counter can be connected
to the control unit in order to measure frequency. An LED lighting system illuminates
the ripple tank from above and takes the form of a stroboscope for which both
asynchronous and synchronous frequencies can be set. Underneath the tank, there
is an inclined mirror which projects the waves onto a viewing screen. Includes
a drawer for storage of accessories and carrying handles for transport. Includes
12 V AC plug-in power supply.
Frequency range: 1- 60 Hz, continuously adjustable
Stroboscope lighting: LED
Terminals for frequency counter: 4-mm safety sockets
Power supply: 100 –Ÿ 240 V plug-in power supply
Dimensions of tank structure: 400 x 300 x 320 mm
Dimensions of projection screen: 375 x 320 mm
Contents:
1 Ripple tank with projection mirror, viewing screen and lighting system
1 Control unit
1 Plug-in power supply
1 Module for generating straight waves
1 Module for generating circular waves
1 Module for generating two interfering circular waves
1 Long hose
3 Obstructing bodies for reflection and refraction (prism, biconcave lens
and biconvex lens)
4 Obstructing bodies for setting up a single slit and a double slit
1 Drainage hose
of waves using the example of waves in water. The ripple tank is a shallow tank
with a glass floor inside an aluminium frame, which can be filled with water.
The tank can be aligned such that it is horizontal by means of adjustable feet.
It is possible to generate both circular or straight waves in the tank by means
of localised oscillations in air pressure and the frequency and amplitude of those
waves can be set up using a control unit. An external counter can be connected
to the control unit in order to measure frequency. An LED lighting system illuminates
the ripple tank from above and takes the form of a stroboscope for which both
asynchronous and synchronous frequencies can be set. Underneath the tank, there
is an inclined mirror which projects the waves onto a viewing screen. Includes
a drawer for storage of accessories and carrying handles for transport. Includes
12 V AC plug-in power supply.
Frequency range: 1- 60 Hz, continuously adjustable
Stroboscope lighting: LED
Terminals for frequency counter: 4-mm safety sockets
Power supply: 100 –Ÿ 240 V plug-in power supply
Dimensions of tank structure: 400 x 300 x 320 mm
Dimensions of projection screen: 375 x 320 mm
Contents:
1 Ripple tank with projection mirror, viewing screen and lighting system
1 Control unit
1 Plug-in power supply
1 Module for generating straight waves
1 Module for generating circular waves
1 Module for generating two interfering circular waves
1 Long hose
3 Obstructing bodies for reflection and refraction (prism, biconcave lens
and biconvex lens)
4 Obstructing bodies for setting up a single slit and a double slit
1 Drainage hose
Properties
- 1017591/3B
