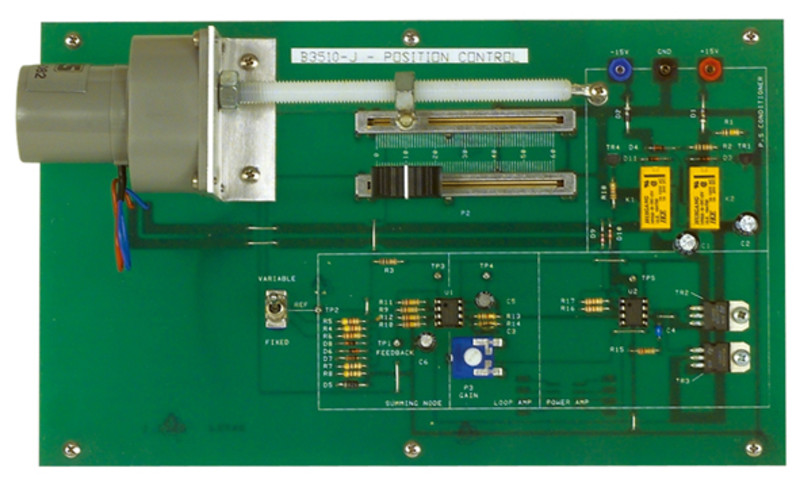

This model is designed for the simplified study of a closed position feedback loop. It is composed of a direct current motor, the rotation of which drives a worm-screw.
The screw cursor is integrally attached to a copying potentiometer which supplies an electrical image of its position.
The potentiometer operated manually determines the basic position.
PRACTICAL WORKS
• Study of the principle of a closed feedback loop: error voltage, pre-amplification, driver stage, push-pull.
• Study of limitation of movements circuits.
• Anti-jamming system.
• Study of the feedback response to a voltage step for different values of loop gain.
ACCESSORIES SUPPLIED
1 set of leads Ø2mm : 3 x 100cm / 2 x 30cm
The screw cursor is integrally attached to a copying potentiometer which supplies an electrical image of its position.
The potentiometer operated manually determines the basic position.
PRACTICAL WORKS
• Study of the principle of a closed feedback loop: error voltage, pre-amplification, driver stage, push-pull.
• Study of limitation of movements circuits.
• Anti-jamming system.
• Study of the feedback response to a voltage step for different values of loop gain.
ACCESSORIES SUPPLIED
1 set of leads Ø2mm : 3 x 100cm / 2 x 30cm
Eigenschappen
- B3510-J/ELE
