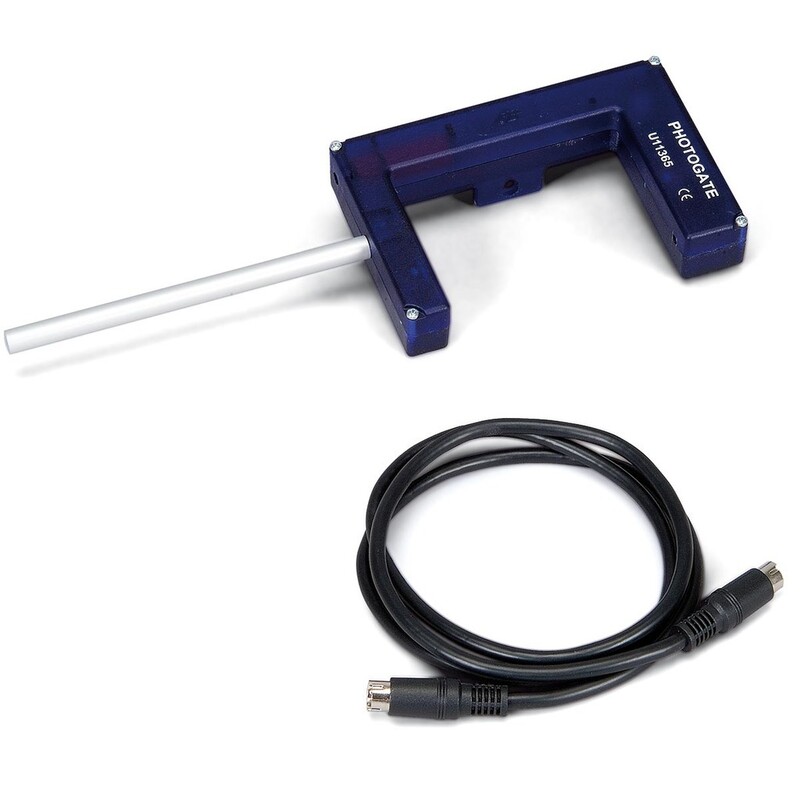

Infrared photo gate for triggering the 3B NETlog unit (U11300) or a digital counter (U8533341).
For time measurements in experiments on free fall, motion on a track or pendulum oscillations and for counting pulses.
It can be operated in internal mode using the built-in infra-red light source or in external mode with the aid of a laser pointer,
which needs to be obtained separately. It then acts as a wide-range light barrier, allowing it to be used at sporting events,
for example.
The gate includes an operational indicator light, stand rod with screw thread, M6 bolt for attachment to a roller track (U35000)
and connector lead with 8 pin miniDIN plugs.
Barrier spacing: 82 mm
Rise time: 60 ns
Spatial resolution: < 1 mm
Time resolution: 0.1 ms
For time measurements in experiments on free fall, motion on a track or pendulum oscillations and for counting pulses.
It can be operated in internal mode using the built-in infra-red light source or in external mode with the aid of a laser pointer,
which needs to be obtained separately. It then acts as a wide-range light barrier, allowing it to be used at sporting events,
for example.
The gate includes an operational indicator light, stand rod with screw thread, M6 bolt for attachment to a roller track (U35000)
and connector lead with 8 pin miniDIN plugs.
Barrier spacing: 82 mm
Rise time: 60 ns
Spatial resolution: < 1 mm
Time resolution: 0.1 ms
Eigenschappen
- 1000563/3B
- U11365
