Principle
The momentum of inertia of the gyroscope is investigated by measuring the angular acceleration caused by torques of different known values. In this experiment, two of the axes of the gyroscope are fixed. The relationship between the precession frequency and the gyro-frequency of the gyroscope with 3 free axes is examined for torques of different values applied to the axis of rotation. If the axis of rotation of the force free gyroscope is slightly displaced, a nutation is induced. The nutation frequency will be investigated as a function of gyro frequency.
Tasks
Determination of the momentum of inertia of the gyroscope by measurement of the angular acceleration.
Determination of the momentum of inertia by measurement of the gyro-frequency and precession frequency.
Investigation of the relationship between precession and gyro-frequency and its dependence from torque.
Investigation of the relationship between nutation frequency and gyro-frequency.
What you can learn about
Momentum of inertia
Torque
Angular momentum
Precession
Nutation

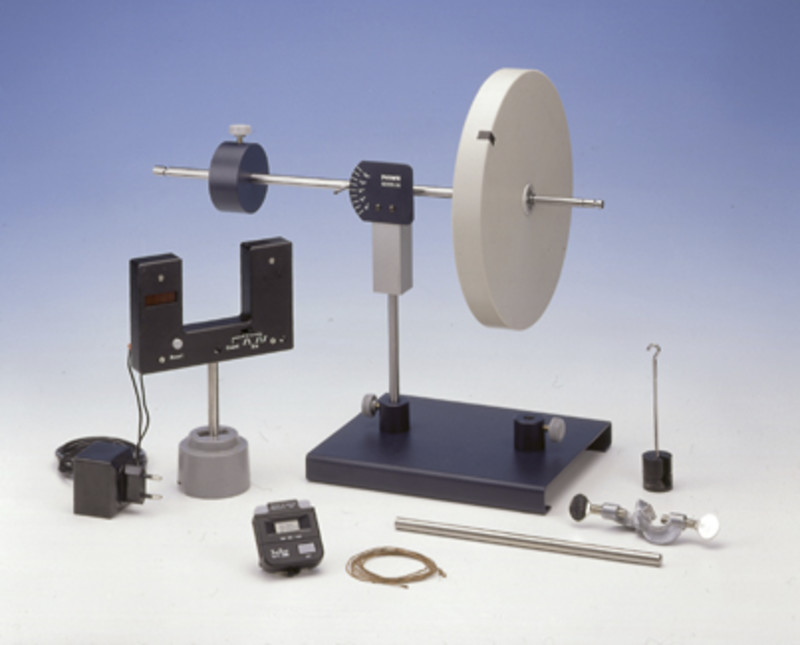

Gyroscope with 3 axes 02555-00 1x
Light barrier with counter 11207-30 1x
Additional gyro-disk w. c-weight 02556-00 1x
Power supply 5 V DC/2.4 A with 4 mm plugs 11076-99 1x
Barrel base PHYWE 02006-55 1x
Stopwatch, digital, 1/100 s 03071-01 1x
Weight holder for slotted weights 02204-00 1x
Slotted weight, black, 10 g 02205-01 4x
Slotted weight, black, 50 g 02206-01 1x
Fishing line, l. 20m 02089-00 1 x
The momentum of inertia of the gyroscope is investigated by measuring the angular acceleration caused by torques of different known values. In this experiment, two of the axes of the gyroscope are fixed. The relationship between the precession frequency and the gyro-frequency of the gyroscope with 3 free axes is examined for torques of different values applied to the axis of rotation. If the axis of rotation of the force free gyroscope is slightly displaced, a nutation is induced. The nutation frequency will be investigated as a function of gyro frequency.
Tasks
Determination of the momentum of inertia of the gyroscope by measurement of the angular acceleration.
Determination of the momentum of inertia by measurement of the gyro-frequency and precession frequency.
Investigation of the relationship between precession and gyro-frequency and its dependence from torque.
Investigation of the relationship between nutation frequency and gyro-frequency.
What you can learn about
Momentum of inertia
Torque
Angular momentum
Precession
Nutation
Gyroscope with 3 axes 02555-00 1x
Light barrier with counter 11207-30 1x
Additional gyro-disk w. c-weight 02556-00 1x
Power supply 5 V DC/2.4 A with 4 mm plugs 11076-99 1x
Barrel base PHYWE 02006-55 1x
Stopwatch, digital, 1/100 s 03071-01 1x
Weight holder for slotted weights 02204-00 1x
Slotted weight, black, 10 g 02205-01 4x
Slotted weight, black, 50 g 02206-01 1x
Fishing line, l. 20m 02089-00 1 x
Eigenschappen
- P2131900
